Top Hung Window Arm Long
Arms
The TOP HUNG WINDOW ARM LONG is a sturdy and versatile solution for
top-hung windows, designed for easy installation and strong closure.
With a space-saving design that folds back 90° horizontally when closed,
it's available in two lengths to accommodate various window sizes and
features an adjustable fixing plate for stepped profiles up to 20mm.
Compatible with hinges or self-balancing arms, it's built with
high-quality materials, including Zamak frame and sash fixing
components, a black polyamide lever, and a steel arm.
- AVAILABILITY: AVAILABLE / IN STOCK
- SKU: A7B2C9D603
The TOP HUNG WINDOW ARM LONG is a sturdy and versatile solution for
top-hung windows, designed for easy installation and strong closure.
With a space-saving design that folds back 90° horizontally when closed,
it's available in two lengths to accommodate various window sizes and
features an adjustable fixing plate for stepped profiles up to 20mm.
Compatible with hinges or self-balancing arms, it's built with
high-quality materials, including Zamak frame and sash fixing
components, a black polyamide lever, and a steel arm.
Technical Features of the Arm :
1. Sturdy and Easy Installation: The Ombu Arm is designed for
easy installation and provides
strong closure for top-hung
windows.
2. Space-Saving Design: When the window is closed, the Arm folds back 90° horizontally, occu- pying minimal space in the room.

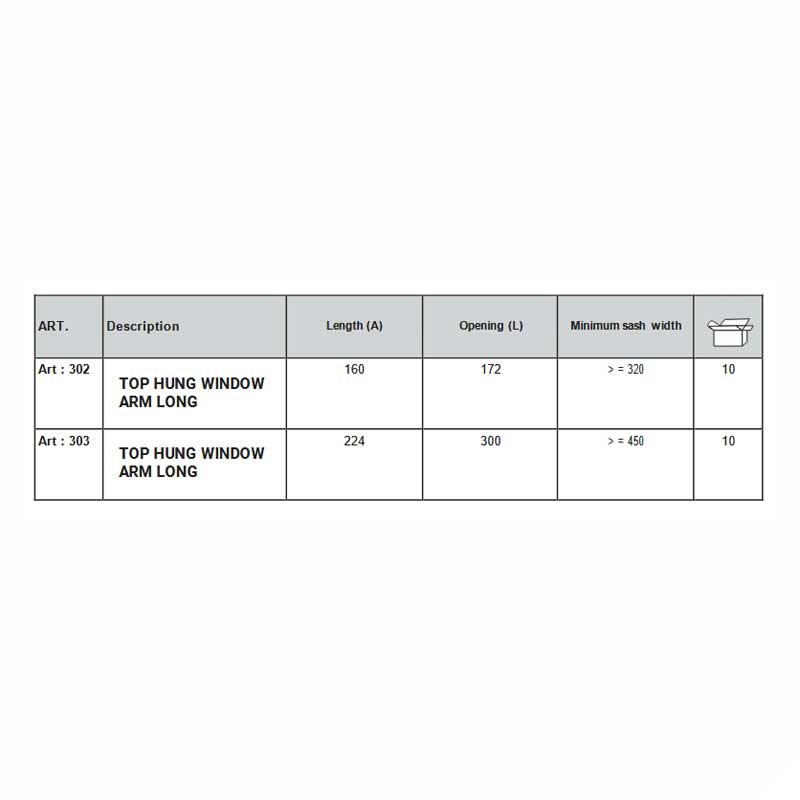

3. Two Length Options: The Arm is available in two different lengths to accommodate various window sizes.
4. Adjustable Installation: It can be installed on stepped profiles ranging from flush (0mm) to 20mm, thanks to an adjustable fixing plate.
5. Versatile Usage: The arm is compatible with top-hung casements and can be used with hinges or self-balancing arms, depending on the window's weight, size, and intended use.
Materials Used :
- Zamak frame and sash fixing components
- Black polyamide lever
- Steel arm
